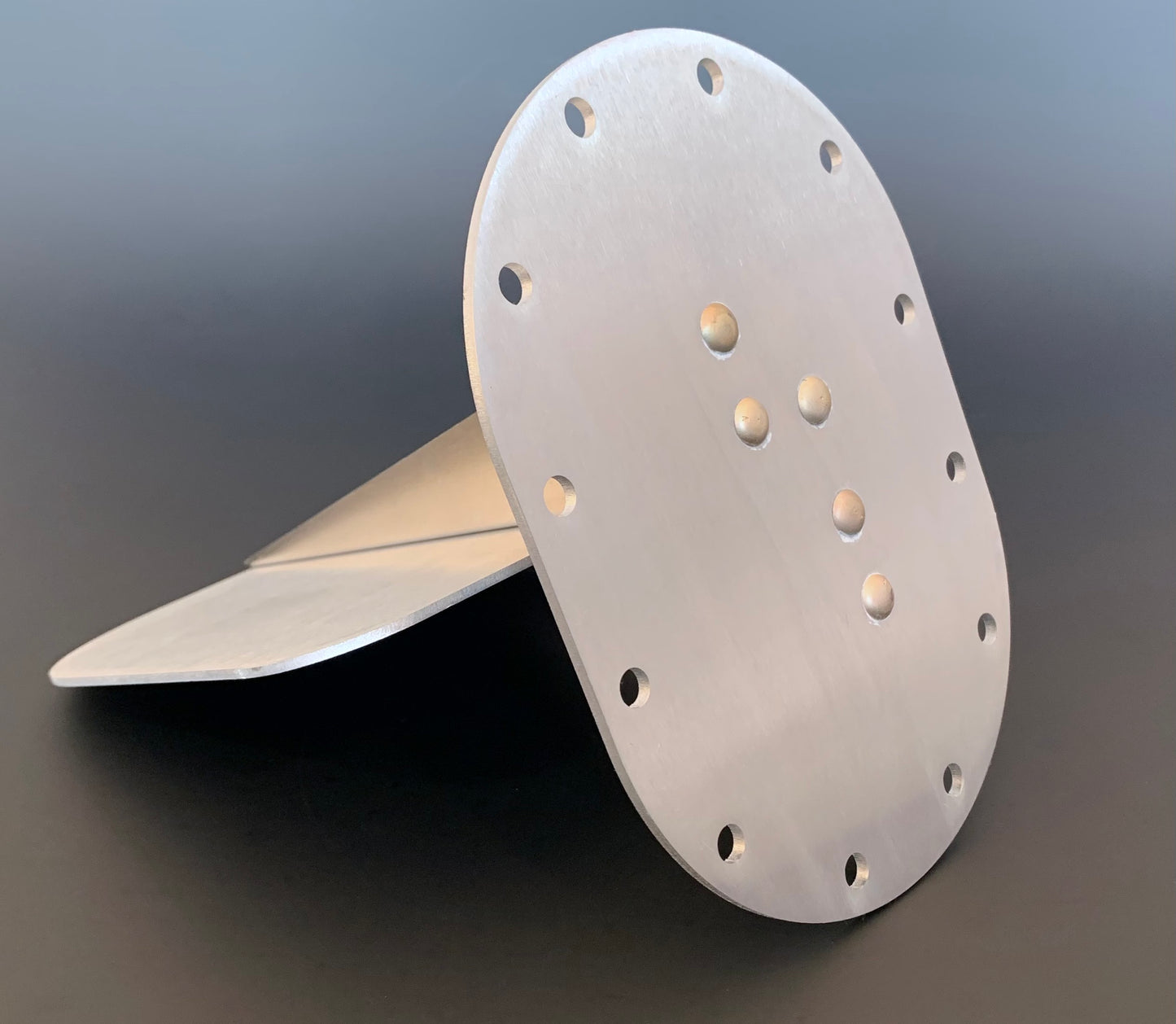

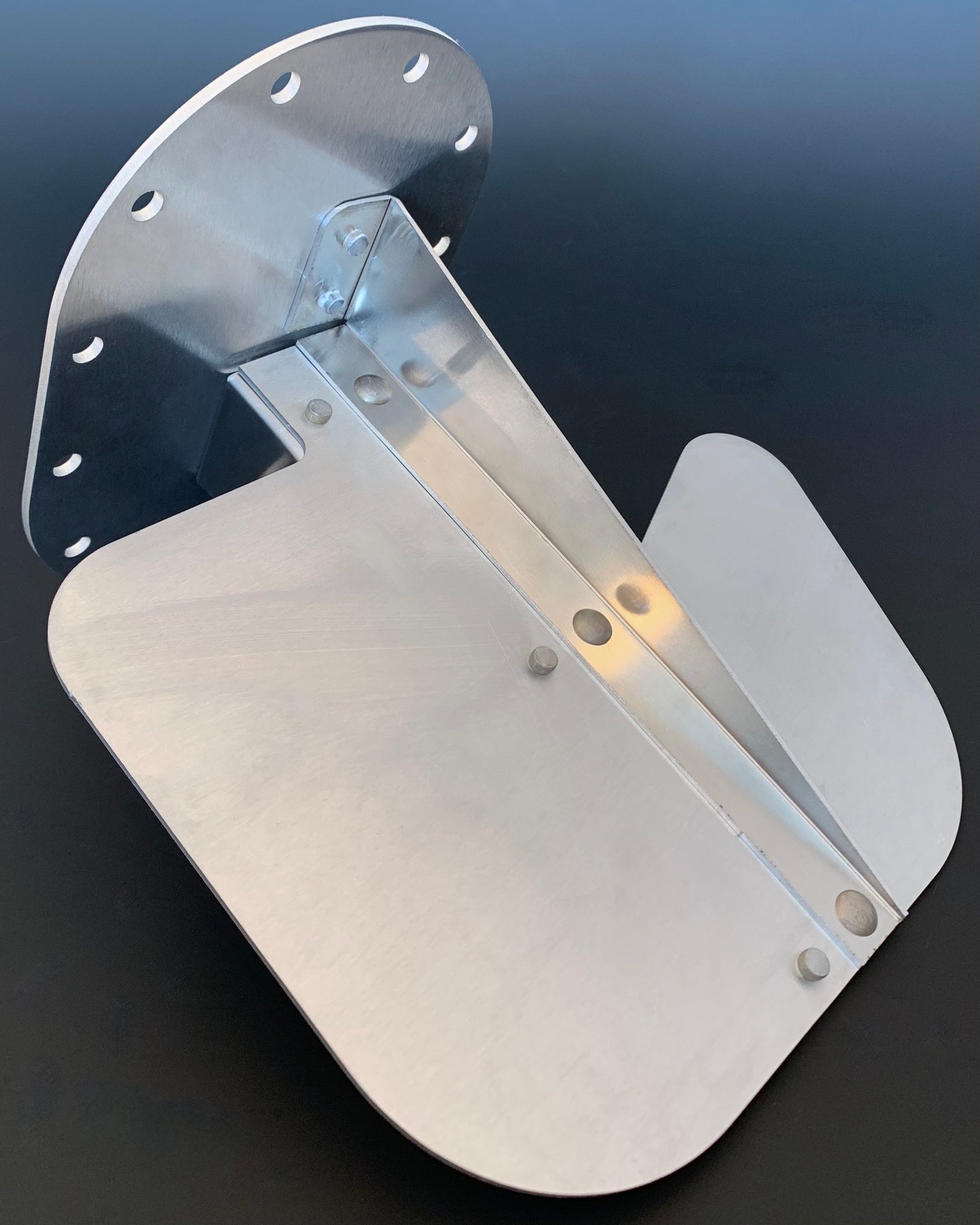

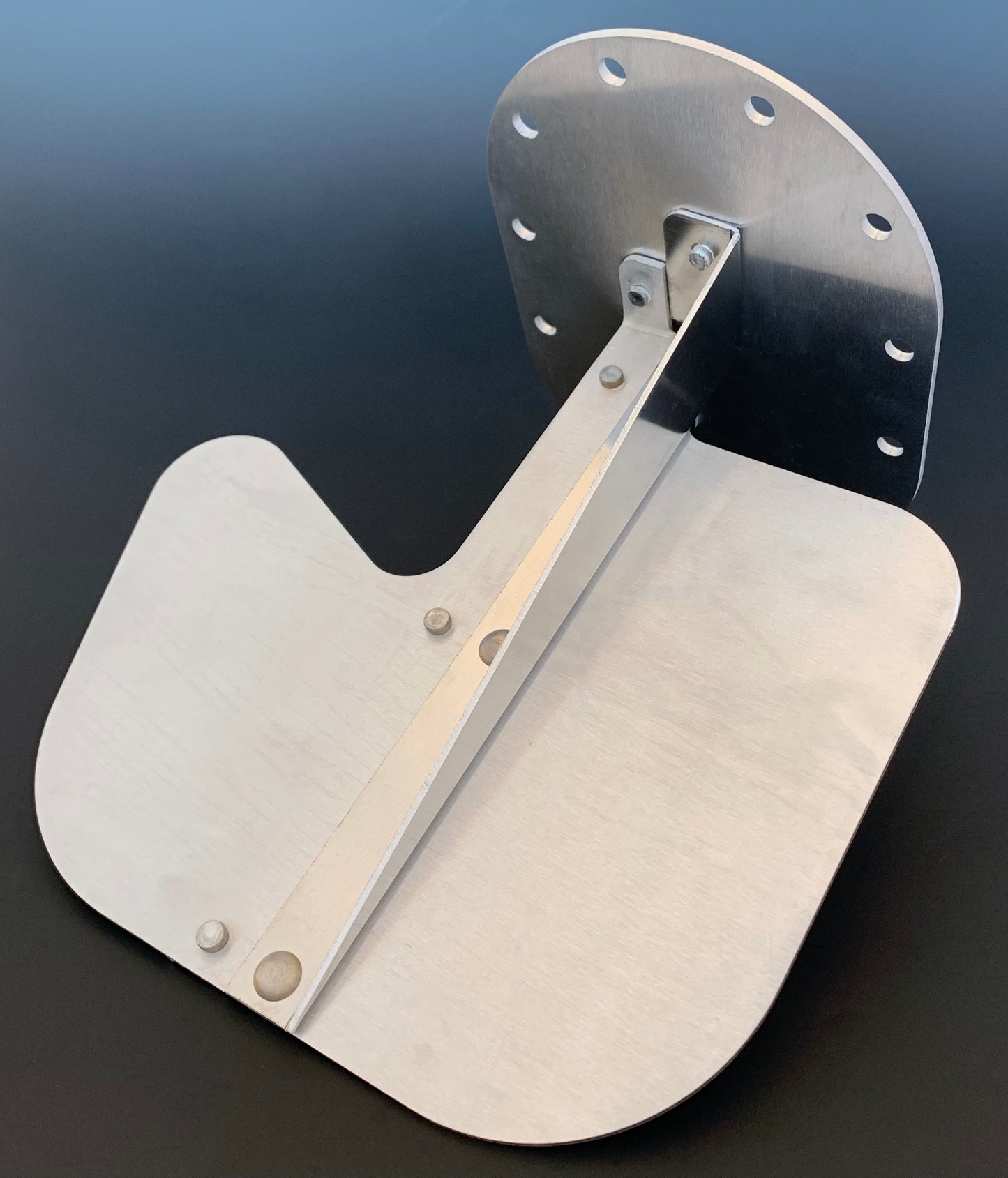

MKII Fuel Baffle Plates

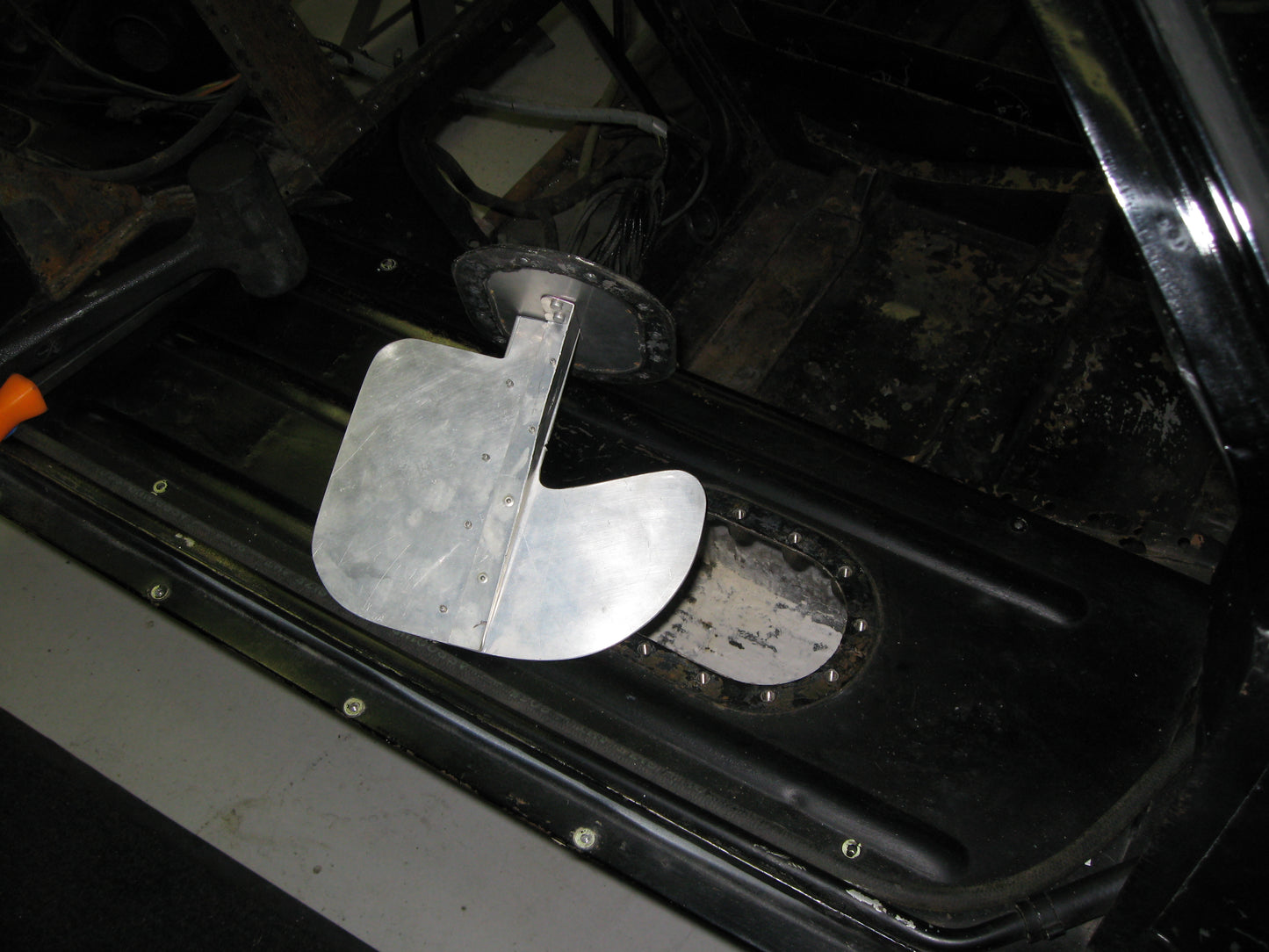

Baffles installed mid-length in the sponsons.

The MKII version had several robustness actions for racing:

• Increased baffle plate thickness

• Rotated rather than mirrored stiffening ribs, allowing double the number of rivets

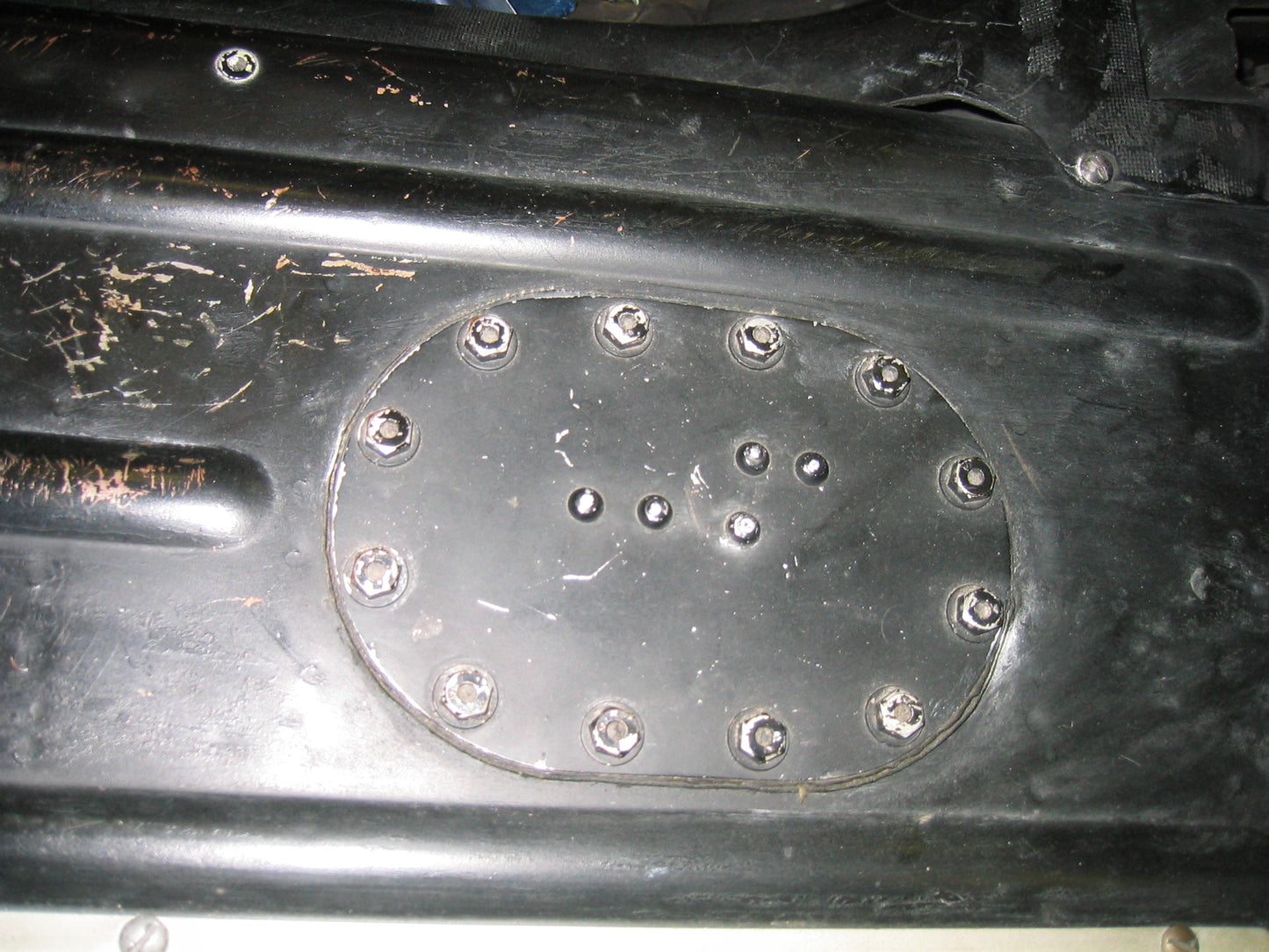

• Altered access plate rivet pattern to increase torsional rigidity

• Access plate fasteners are 1/4"-28 bolts rather than countersunk machine screws.

Access plate rivets are sealed with an alcohol-resistant sealant.

Can be installed in MKI without modification.

Same part used LH and RH.

Sold as a pair.

P-1-2217-BA
