MKIIA Fuel Pump Mount

The fuel pump mounting bracket used to on Holman-Moody team cars at 1966 LeMans.

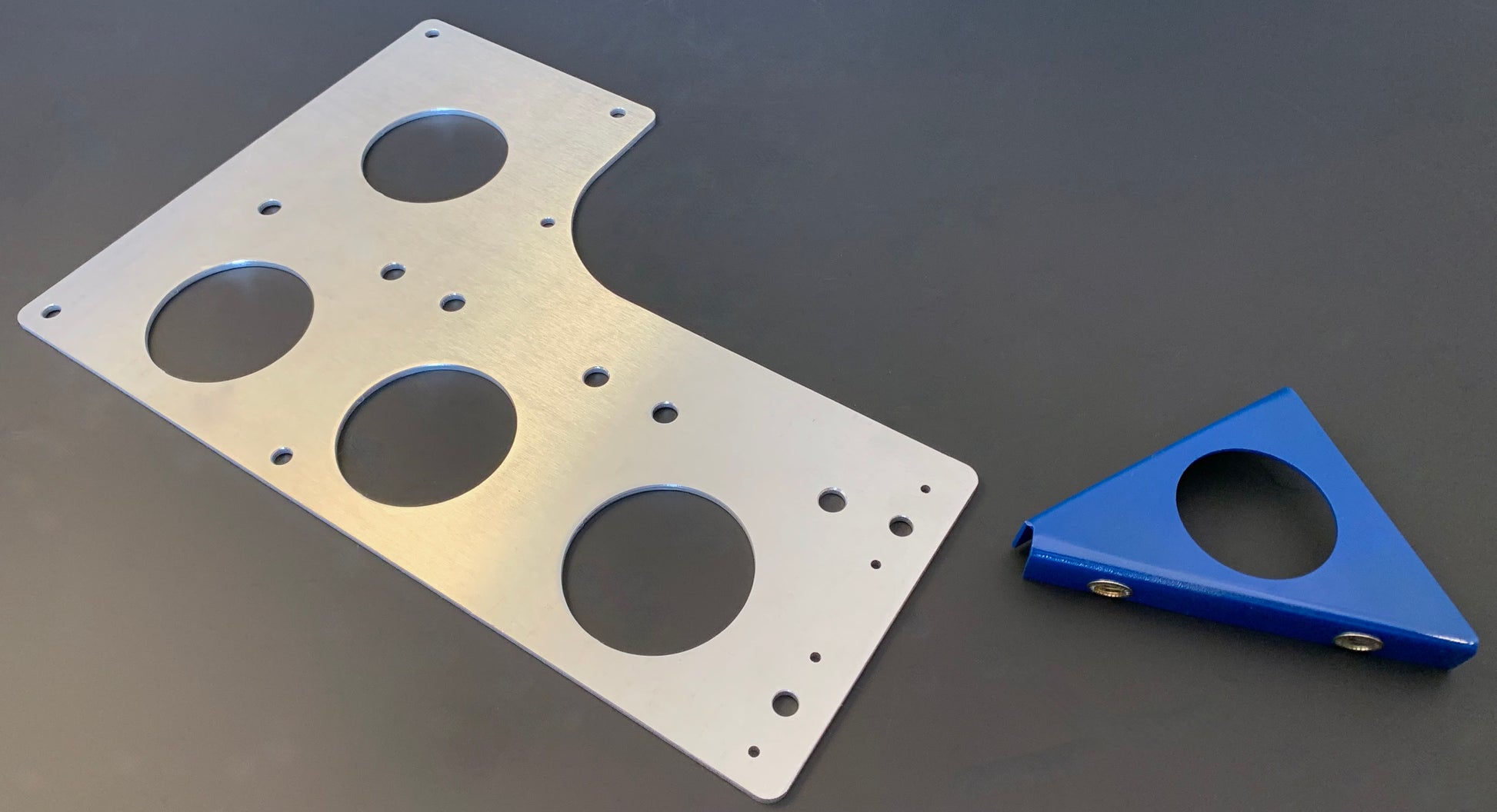

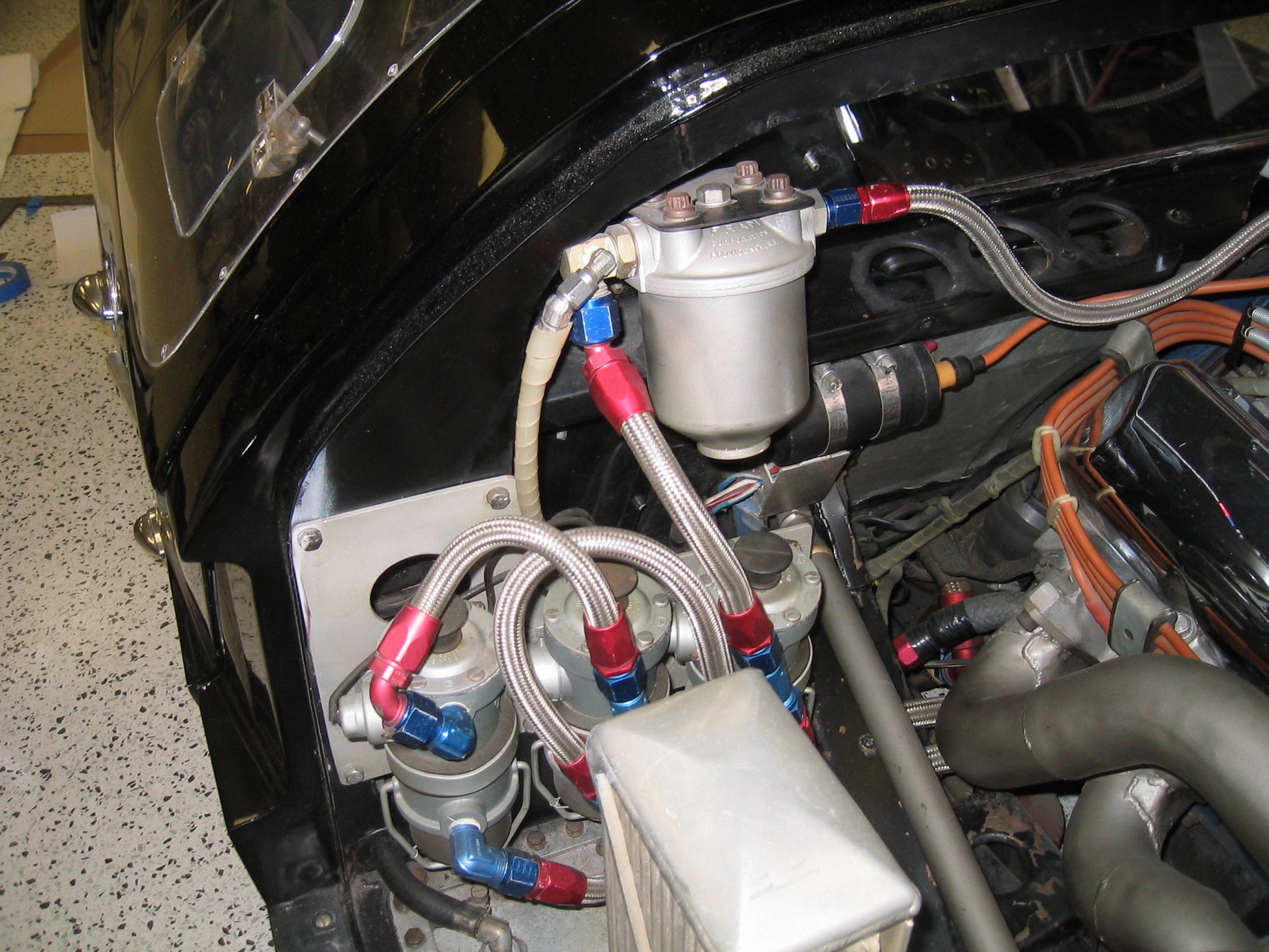

Mounts 3 Stewart-Warner 240 fuel pumps on the LHS.  The main plate mounts to the B-pillar while the triangular bracket mounts to the upper trailing arm mount flange.

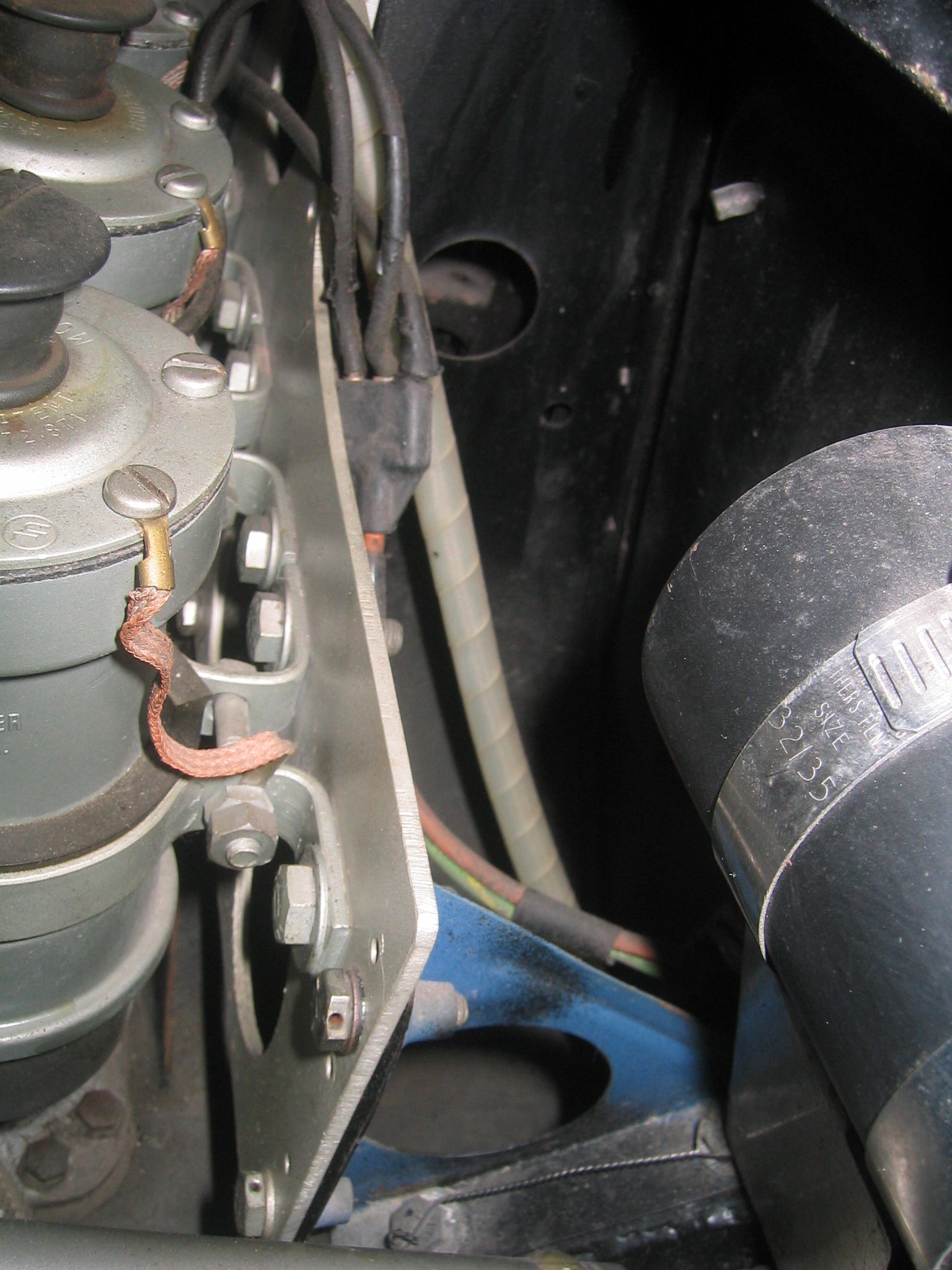

Made from original parts on chassis 1032.

This bracket was later modified and eventually mounted on the RHS of 1967 MKIIB vehicles.

Features:

• Main plate made of 0.125"-thick 6061-T6 aluminum
• Triangular bracket made of 0.060" steel and powder-coated for long life

Fasteners not included.

P-1-2431-BA (Bracket, Fuel Pump,  MKII)

P-10-9580-BA (Mount, Fuel Pump, MKII)
